Postal’s MS Dynamics 365 integration enables 2-way synchronization between their Dynamics 365 instance and Postal Engage platform for Accounts, Contacts, and engagement metrics. However, Dynamics 365 customers have to set up custom fields to receive and display these metrics.
This document outlines how to operationalize these custom fields.
Note: These instructions are only a guide and refer to Sandbox capabilities. Customers will need to engage their Dynamics365 admin for support and contextualization. Also, it is recommended that customers refer to MS Dynamics 365 documentation for updated and latest instructions. |
Before You Get Started
Custom fields are specific to an entity ( e.g. Contact or Account). Below is a tabulation of custom fields you will need to set up.
| Entity | Custom Fields | Field label | DataType | Field Type |
| Contact | Personalized Emails Sent | new_personalized_emails_sent | Whole Number | Simple |
| Personalized Emails Accepted | new_personalized_emails_accepted | Whole Number | Simple | |
| Personalized Emails Declined | new_personalized_emails_declined | Whole Number | Simple | |
| Orders Confirmed | new_orderconfirmed | Whole Number | Simple | |
| Total Postal Spend | new_total _postal_spend | Currency | Simple | |
| Touches | new_touches | Whole Number | Simple | |
| Account | Personalized Emails Sent | new_personalized_emails_sent | Whole Number | Simple |
| Personalized Emails Accepted | new_personalized_emails_accepted | Whole Number | Simple | |
| Personalized Emails Declined | new_personalized_emails_declined | Whole Number | Simple | |
| Orders Confirmed | new_orderconfirmed | Whole Number | Simple | |
| Total Postal Spend | new_total _postal_spend | Currency | Simple |
Creating Your Custom Fields
We will illustrate the creation of a custom field with an example for 1 entity. Other custom fields can be similarly created. Example custom field: Personalized Emails Sent.
Entity: Contact

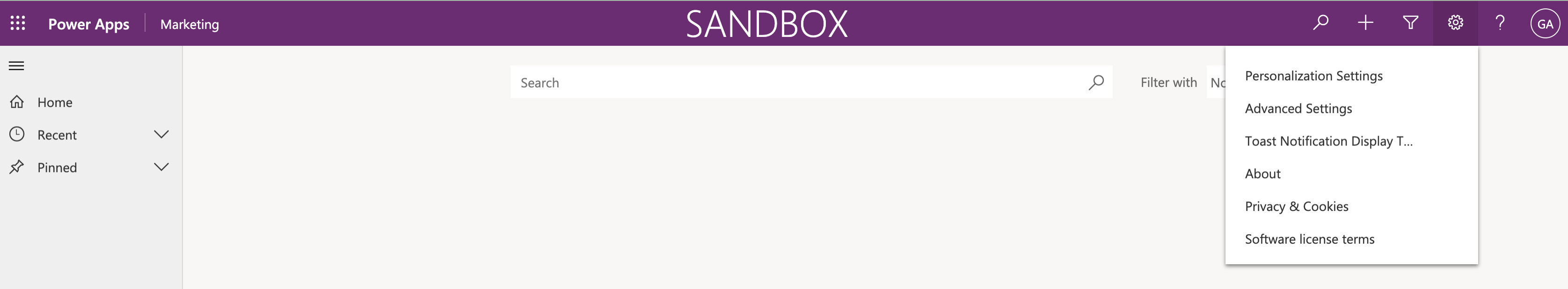

Step 1: Navigate to advanced settings

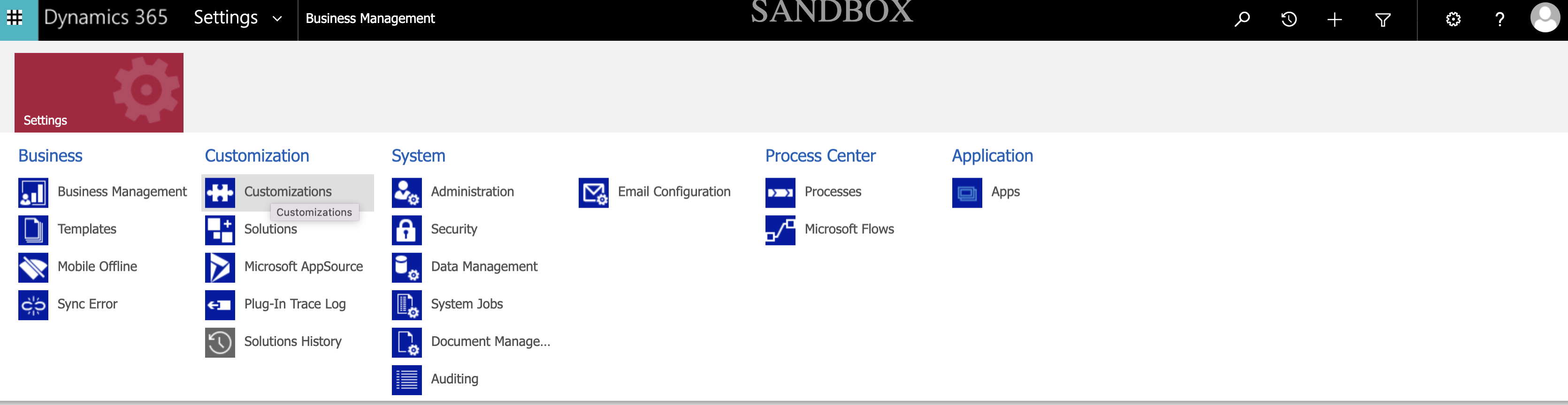

Step 2: Double Click on “Customizations”
Step 3: Double Click on “Customize the system”

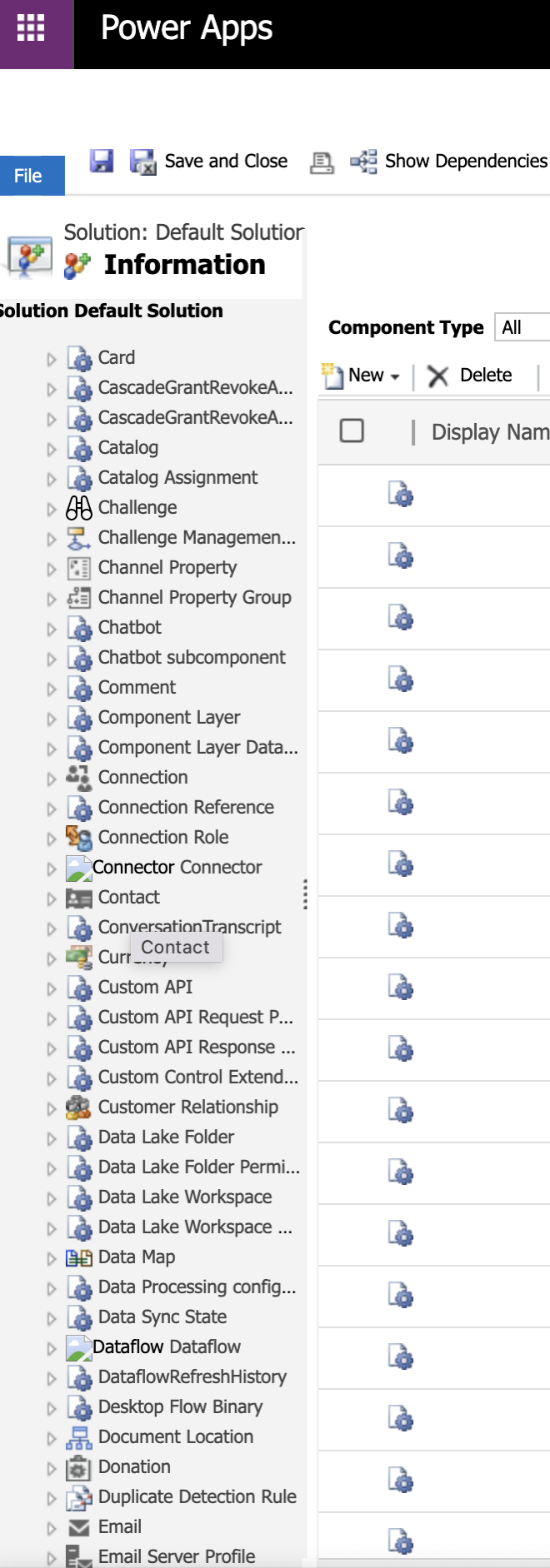

Step 4: Double Click on “Entities” and select Contact

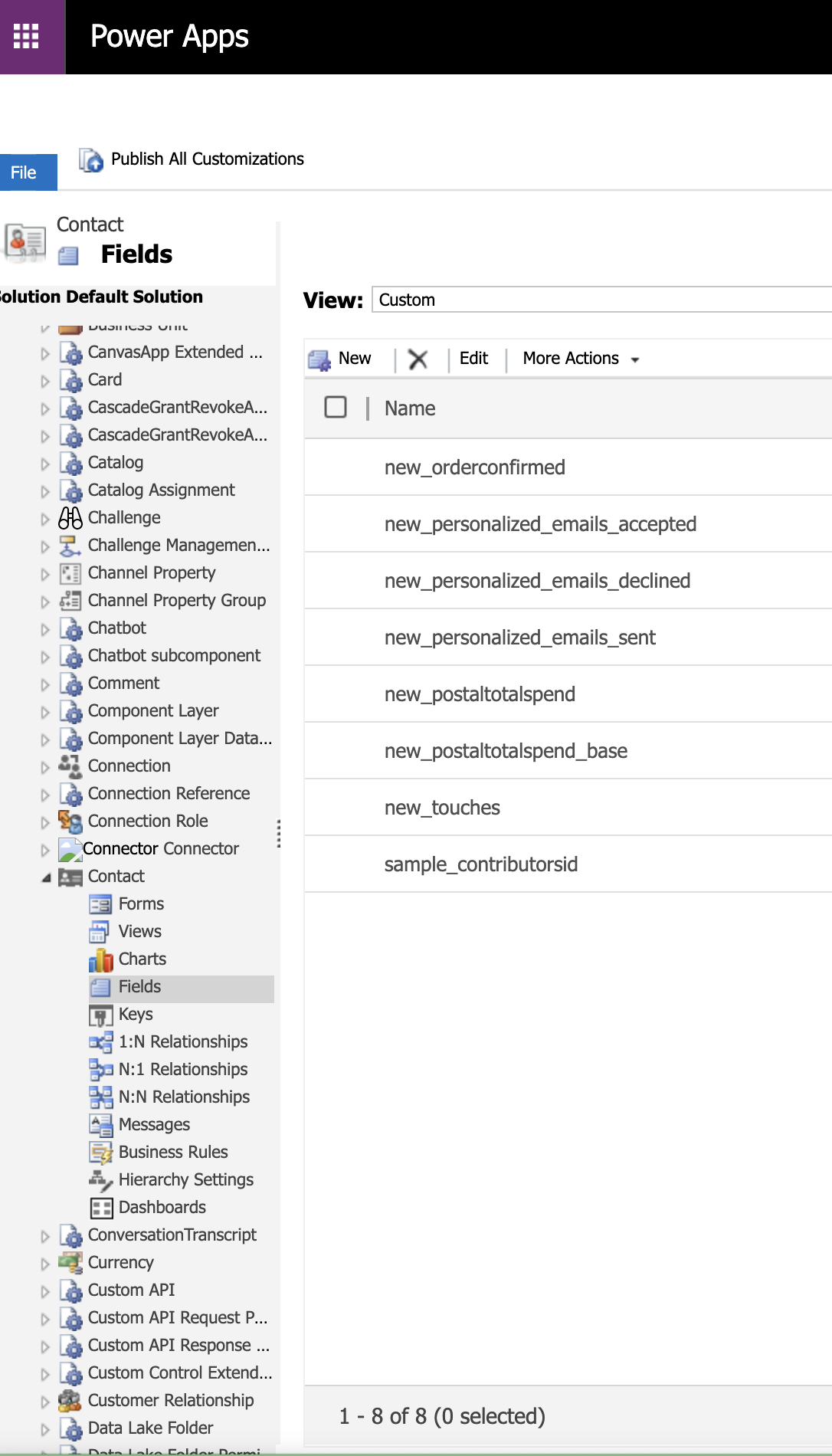

Step 5: Select Fields

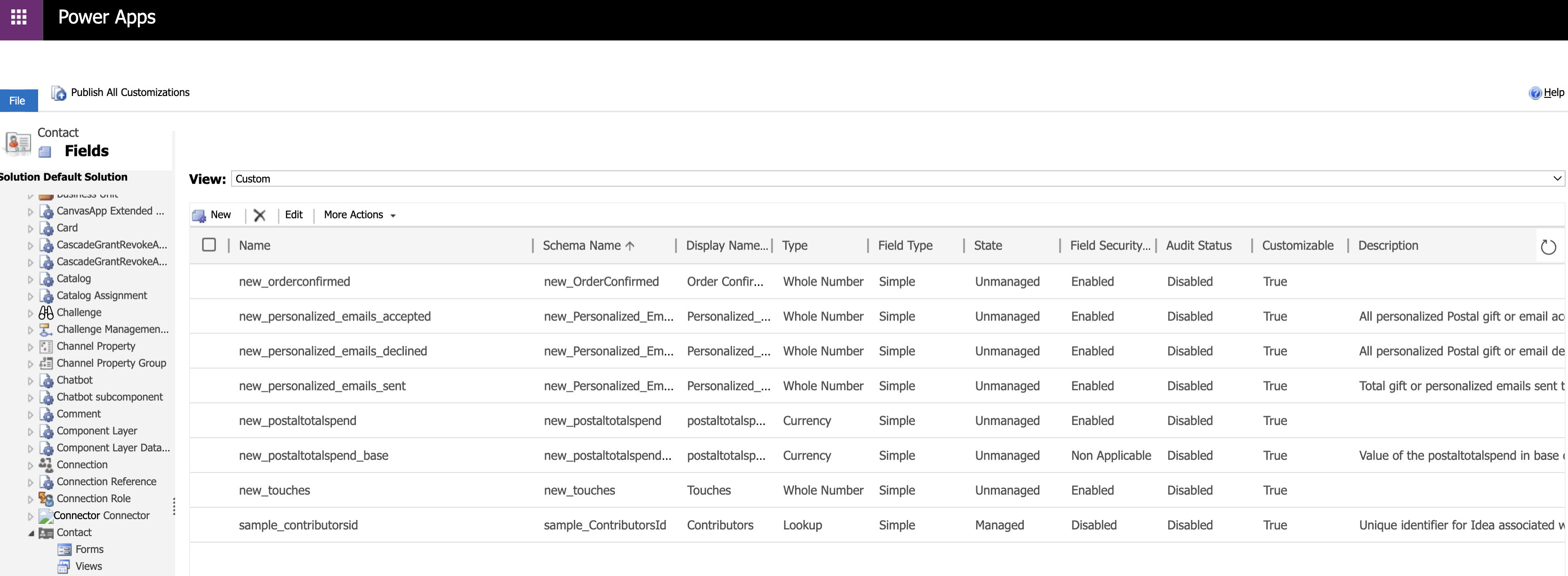

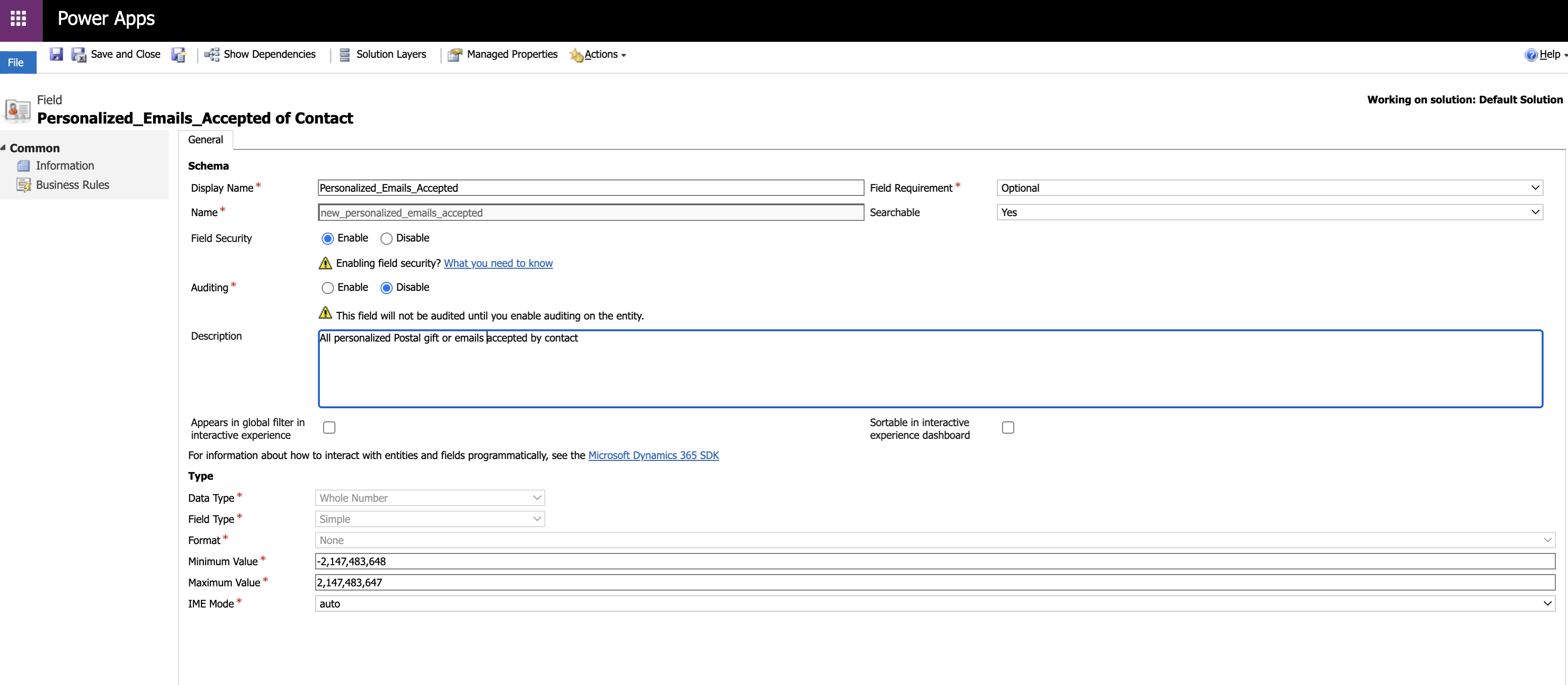

Step 6: Add a new custom field
|
Note: The prefix “New” is variable and gets automatically added depending on the default Dynamics365 Publisher settings.
|
Step 7: Once done, Publish the customizations
Mapping Your Custom Field
Custom fields need to be mapped to the default Contact form used by your organization’s Dynamics365 instance.

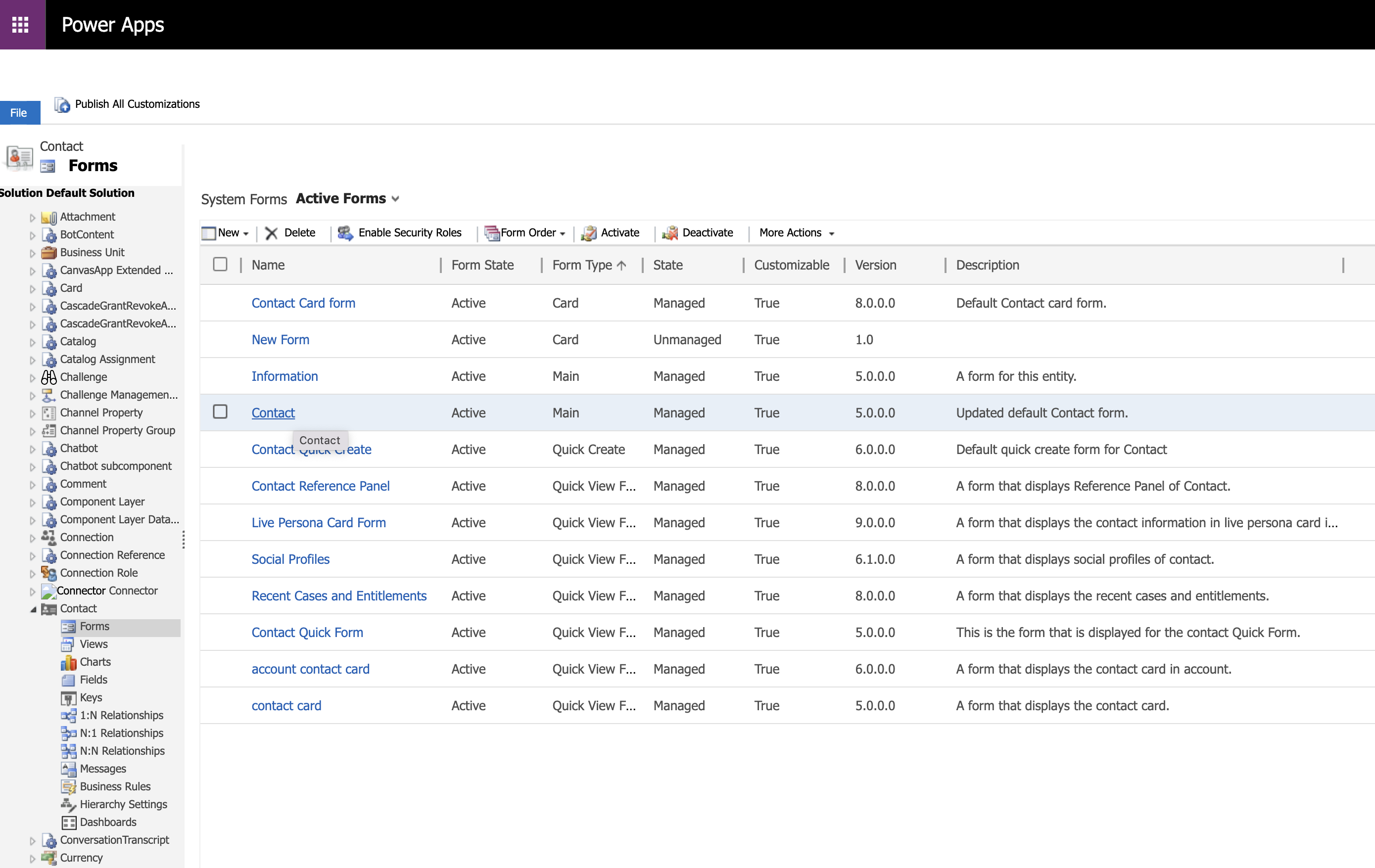

Step 1: Pick the default Contact form
Step 2: Select the Custom fields from the “Field Explorer” on the right and drag/drop to place them into the form
Step 3: Save and Publish the form
Congratulations, you've created the custom field. Using the instructions and chart above, continue to add all custom fields as necessary.
